Stop Fearing the Knock: When Metal Echoes Mimic Internal Catastrophe
The sound of rhythmic metal-on-metal clanking from an engine bay is the universal harbinger of financial dread for car owners. Often, the immediate assumption drifts toward rod knock, piston slap, or catastrophic failure revealed through vehicle diagnostics. However, the intersection of thermal dynamics and structural fatigue often produces a much simpler, albeit terrifying, acoustic signature: the loose heat shield. In many auto repair scenarios, the difference between a total engine overhaul and a quiet ride is a mere fifteen-dollar stainless steel clamp. These thin-gauge aluminum or steel shrouds are designed to protect sensitive components from the extreme temperatures of the exhaust manifold and catalytic converter, but when their mounting points succumb to oxidation, they transform into high-frequency percussion instruments.
The Engineering Flaw Behind Your Exhaust Shroud’s Vibration
Most modern vehicles utilize a sandwich-style heat shield construction. While effective at dissipating thermal energy, these components are subject to radical expansion and contraction cycles. Over time, the bolt holes undergo galvanic corrosion, especially in regions where road salt is prevalent. This leads to a ‘blow out’ where the fastener remains attached to the vehicle, but the shield itself is free to vibrate against the exhaust pipe. This vibration often synchronizes with engine RPM, leading even seasoned drivers to believe they are hearing a failing valvetrain. Applying how to fix a rattling exhaust for the price of a hose clamp techniques allows you to bypass the dealership’s expensive replacement part and secure the existing shield with a high-heat resistant solution that often outlasts the car itself.
Could Your Transmission Fault Actually Be an Exhaust Resonance?
It is surprisingly common for drivers to seek help for transmission troubles when the actual culprit is a resonant frequency emitted by a loose shield under load. When the vehicle shifts gears or undergoes heavy acceleration, the torque of the engine slightly shifts the exhaust alignment, causing the loose metal to buzz against the chassis. This ‘grinding’ sensation can be felt through the floorboards, mimicking the symptoms of a failing torque converter. According to technical standards established by SAE International regarding Noise, Vibration, and Harshness (NVH), peripheral component resonance can frequently exceed the decibel levels of internal mechanical friction, leading to false diagnostic positives. Professional technicians use acoustic sensors to isolate these sounds, but a simple visual inspection during a routine car service can often identify the shiny rub marks left by a wandering shield.
Before you commit to a major mechanical tear-down, I encourage you to perform a simple ‘tap test’ on your exhaust system when cold. If you find a component that jiggles or rings, you likely just saved yourself thousands in unnecessary labor. If you are interested in more DIY diagnostic techniques, consider reading our guide on the $30 tool that lets you see inside your engine to further verify your vehicle’s health.
Stop Chasing Sensors and Start Testing Ground Paths
Moving from the tactile world of metal rattles to the invisible realm of electrons, we encounter the most deceptive diagnostic ‘ghosts’ in the automotive world. A common trap for DIY enthusiasts and even experienced technicians is replacing a functional sensor simply because a trouble code suggests a circuit malfunction. In reality, the root cause is often a compromised ground path rather than the sensor itself. High-resistance grounds cause erratic voltage drops that skew sensor data, leading the Engine Control Unit (ECU) to compensate for a problem that does not exist. If you have ever suspected the hidden ground wire that causes intermittent starting issues, you are already ahead of the curve. These wires are the backbone of your car’s electrical stability, yet they are the first to succumb to road spray and environmental oxidation.
How Invisible Electrical Interference Sabotages Modern ECUs
Beyond physical wiring integrity, we must consider the nuance of ‘dirty’ electricity. When an alternator’s internal diode bridge begins to fail, it can leak alternating current (AC) into a system designed strictly for direct current (DC). This phenomenon, known as AC ripple, creates electromagnetic interference that can induce false signals in crank and cam position sensors. The result is often a mysterious ‘stutter’ or ‘hesitation’ that behaves like a fuel delivery issue. Before you pull the fuel rail, learning how to test an alternator using only a screwdriver or a basic multimeter can help you rule out charging system noise in minutes. Professional technicians rely on oscilloscopes to visualize this noise, but understanding the underlying physics allows you to make informed decisions without specialized laboratory equipment.
Why Does Your Dashboard Flicker During Low-Speed Maneuvers?
This specific symptom frequently points toward a failing voltage regulator or a parasitic draw that manifests under high electrical load. For instance, when the power steering rack demands peak amperage during a sharp turn, a weak battery or a loose terminal will cause a momentary voltage sag. If you notice why your dashboard lights flicker when you hit a bump, the culprit is often mechanical vibration disrupting an already fragile connection. According to the National Institute for Automotive Service Excellence (ASE), over 70% of reported ‘module failures’ are actually traced back to wiring harness integrity rather than the hardware itself. By utilizing the $5 tool for finding electrical shorts in minutes, you can trace these breaks without invasive teardowns of the interior trim. Have you ever spent hours chasing a fault only to find it was a loose bolt? Share your most frustrating ‘ghost’ repair in the comments below, or continue refining your skills by exploring the hidden world of vehicle diagnostics to ensure you never get caught out by a simple false flag again.
Hunt the Hiss: Why Unmetered Air Destroys Your Fuel Trim
The internal combustion engine is essentially a giant air pump, and its efficiency relies on the precise measurement of every cubic centimeter of air entering the intake manifold. When unmetered air—air that enters the system after the Mass Airflow (MAF) sensor—leaks in, it disrupts the stoichiometric ratio. This is where many DIYers fall into the trap of replacing oxygen sensors. If your scan tool shows a positive fuel trim percentage in the double digits, the sensor isn’t lying; it is screaming that the engine is running lean. These leaks often hide in the accordion-style pleats of intake boots or the manifold gaskets themselves, which shrink during cold weather and expand as the engine warms, creating intermittent lean codes that vanish once the block reaches operating temperature.
Can a Tiny Crack in a Rubber Boot Cause a Transmission Shift Delay?
It sounds like a reach, but the modern Powertrain Control Module (PCM) uses intake vacuum and airflow data to calculate engine load, which is a primary input for transmission shift timing and line pressure. A significant vacuum leak lowers the manifold vacuum, leading the computer to believe the engine is under a higher load than it actually is. Consequently, the transmission may flare during shifts or delay upshifting entirely, mimicking a mechanical clutch failure. This inter-system communication is defined under technical protocols like ISO 15031, which governs how emissions-related diagnostic data is communicated across vehicle networks. By ignoring a five-cent vacuum line crack, you aren’t just hurting your fuel economy; you are subjecting your transmission’s internal friction plates to unnecessary wear from incorrect hydraulic pressure scaling.
Visualize the Invisible with Synthetic Smoke
Tracing a pinhole leak by spraying brake cleaner or soapy water is a classic method, but it carries risks of fire or simple inaccuracy in tight engine bays. Professional-grade smoke machines have become the gold standard for identifying breaches in the intake or Evaporative Emission (EVAP) systems. By injecting a dense, pressurized vapor into a sealed intake, you can literally watch as ghost plumes emerge from the most unlikely places, such as a hairline crack in a plastic intake plenum or a faulty power brake booster diaphragm. If you haven’t seen this in action, it is the single most satisfying diagnostic aha! moment in the shop.
Using these tools allows you to stop guessing and start fixing, ensuring that every seal is airtight before you move on to more expensive electronic components.
The High Cost of Ignoring Long-Term Fuel Trim Deviations
While your car might still drive fine with a minor vacuum leak, the long-term fuel trim (LTFT) is a silent indicator of impending doom. When the ECU consistently adds 15% or 20% more fuel to compensate for extra air, it pushes the fuel injectors to their duty cycle limits and increases the Exhaust Gas Temperatures (EGTs). Over time, this thermal stress can lead to premature catalytic converter meltdown or even burned exhaust valves. Mastering the art of reading live data streams is the difference between a parts changer and a technician. If you’ve ever wondered why your car feels sluggish on hills despite no Check Engine Light, your fuel trims might be hovering just below the threshold for a code. We delve deeper into these hidden performance killers in our analysis of vehicle diagnostics, where we break down the PID data you should be watching every time you plug in a scanner. Have you ever found a leak in a place that seemed impossible? Let’s talk about the most elusive vacuum leaks in the comments below, as we prepare to look at how these mechanical failures eventually trick the ECU into limp home mode.
Forget the Dipstick: Why Color Alone Cannot Diagnose Fluid Degradation
For decades, the ‘pink and sweet’ rule of thumb served as the primary diagnostic for transmission health. However, modern multi-speed planetary gearsets and Continuously Variable Transmissions (CVTs) utilize highly specific synthetic chemistries that do not always discolor when they lose their sheer stability. The viscosity index improvers within the fluid can fail, leading to a loss of hydrostatic pressure that causes internal clutches to slip—even if the fluid still looks brand new on a white paper towel. This ‘silent’ degradation is a primary driver behind modern transmission troubles. When the fluid’s friction coefficient shifts, the Transmission Control Module (TCM) compensates by increasing line pressure, which masks the underlying wear until the hardware reaches a terminal failure point. Monitoring the transmission’s adaptive learn values via a professional scanner is the only way to see if the computer is working overtime to compensate for thinning fluid.
How do you detect a failing solenoid before the dash lights up?
Predictive maintenance on electronic valve bodies requires more than just reading codes; it involves analyzing the amperage draw of individual solenoids. A solenoid might still technically function within its ‘binary’ state—opening and closing when commanded—but if its internal windings are beginning to short, it will draw excessive current or respond with a microscopic delay. This latency disrupts the delicate timing of fluid handover between gear sets, causing the ‘shudder’ many drivers mistake for a bad torque converter. By using an oscilloscope to monitor the Pulse-Width Modulation (PWM) signal, you can identify these ‘lazy’ solenoids before they burn out the TCM’s driver circuits. This level of vehicle diagnostics moves you from reactive repairs to surgical, preventative interventions.
Stop Blaming Hardware for the Chaos Caused by Network Data Collisions

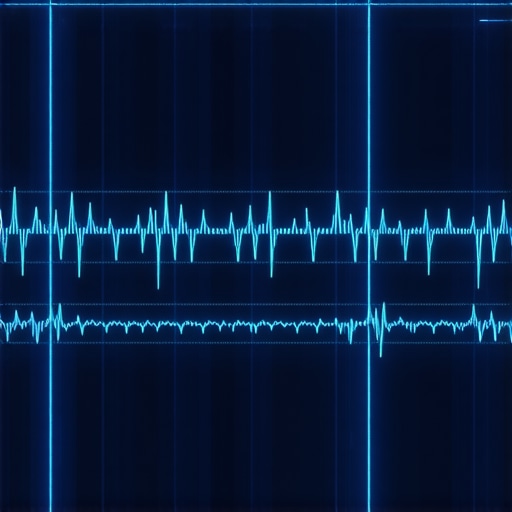

Modern vehicles are essentially rolling local area networks (LANs). When a peripheral module, such as a blind-spot sensor or even a door control unit, suffers from water intrusion, it can begin ‘shouting’ garbled data across the Controller Area Network (CAN). These data collisions create latency in the transmission’s shift commands. If the TCM is waiting for a torque confirmation signal from the ECU that is delayed by three milliseconds due to network traffic, the resulting shift will feel harsh or disconnected. This is not a mechanical failure, but a communication crisis.
Professional technicians often find that cleaning a corroded ground behind a taillight can magically ‘fix’ a shifting issue that looked like a five-thousand-dollar rebuild. According to technical documentation from the Automatic Transmission Rebuilders Association (ATRA), network-induced shift errors are becoming one of the most frequently misdiagnosed symptoms in modern automotive repair shops.
The complexity of these systems means that a single point of failure can have a cascading effect across seemingly unrelated components. If you have ever felt your vehicle ‘stumble’ during a light-throttle cruise, it might not be an engine misfire at all, but rather the TCM struggling to interpret a noisy crankshaft position signal. The integration of auto repair and computer science is no longer optional. To truly master your vehicle’s health, you must learn to look past the mechanical symptoms and investigate the digital architecture that governs them. Have you ever encountered a ‘haunted’ car that seemed to fix itself after a simple battery reset? We want to hear about your weirdest diagnostic wins. Dive deeper into these advanced topics by exploring our guide on choosing the right car service to ensure your technician has the specialized tools needed for these high-level network interrogations.
Expert Insights & Advanced Considerations
Why Voltage Drop Testing Beats a Continuity Check
Many technicians rely on simple continuity tests, but a wire can show continuity while still being unable to carry a functional load. Measuring voltage drop under actual operating conditions is the only way to reveal high-resistance connections that trigger false sensor codes and phantom electrical issues.
Thermal Cycling and the Deceptive Nature of Gaskets
A vacuum leak might only exist for the first five minutes of engine operation. As the intake manifold expands with heat, it seals the gap, making the problem vanish during standard shop hours. Utilizing the $12 tool that finds every vacuum leak in minutes during a cold start is the only way to catch these elusive thermal anomalies before they trigger long-term fuel trim errors. #IMAGE_PLACEHOLDER_E#
Stop Guessing Fluid Health by Sight Alone
Modern synthetics are engineered to hold microscopic particles in suspension without immediate discoloration. If you are trying to learn how to check your transmission fluid level without a dipstick, remember that chemical sheer and viscosity analysis are far more indicative of health than the traditional visual check.
Essential Industry Reference Points
SAE International (Society of Automotive Engineers): This is the definitive global source for the engineering standards that define how modern ECUs communicate across vehicle networks.
ASE (Automotive Service Excellence): Their technical benchmarks provide the framework for professional diagnostics, separating simple parts-replacement from root-cause analysis.
ATRA (Automatic Transmission Rebuilders Association): An invaluable technical resource for staying ahead of transmission troubles caused by the complex interplay between TCM software and internal hydraulic pressure.
The Shift Toward Predictive Maintenance
Mastering vehicle diagnostics requires a mindset shift from fixing broken hardware to investigating systemic data failures. Whether it is tracking down the hidden ground wire that causes intermittent starting issues or monitoring CAN bus latency, the objective is to interpret the digital signals before they manifest as mechanical failure. We invite you to share your most challenging diagnostic success stories in the comments below, or reach out to our team for a professional consultation on your vehicle’s health.
